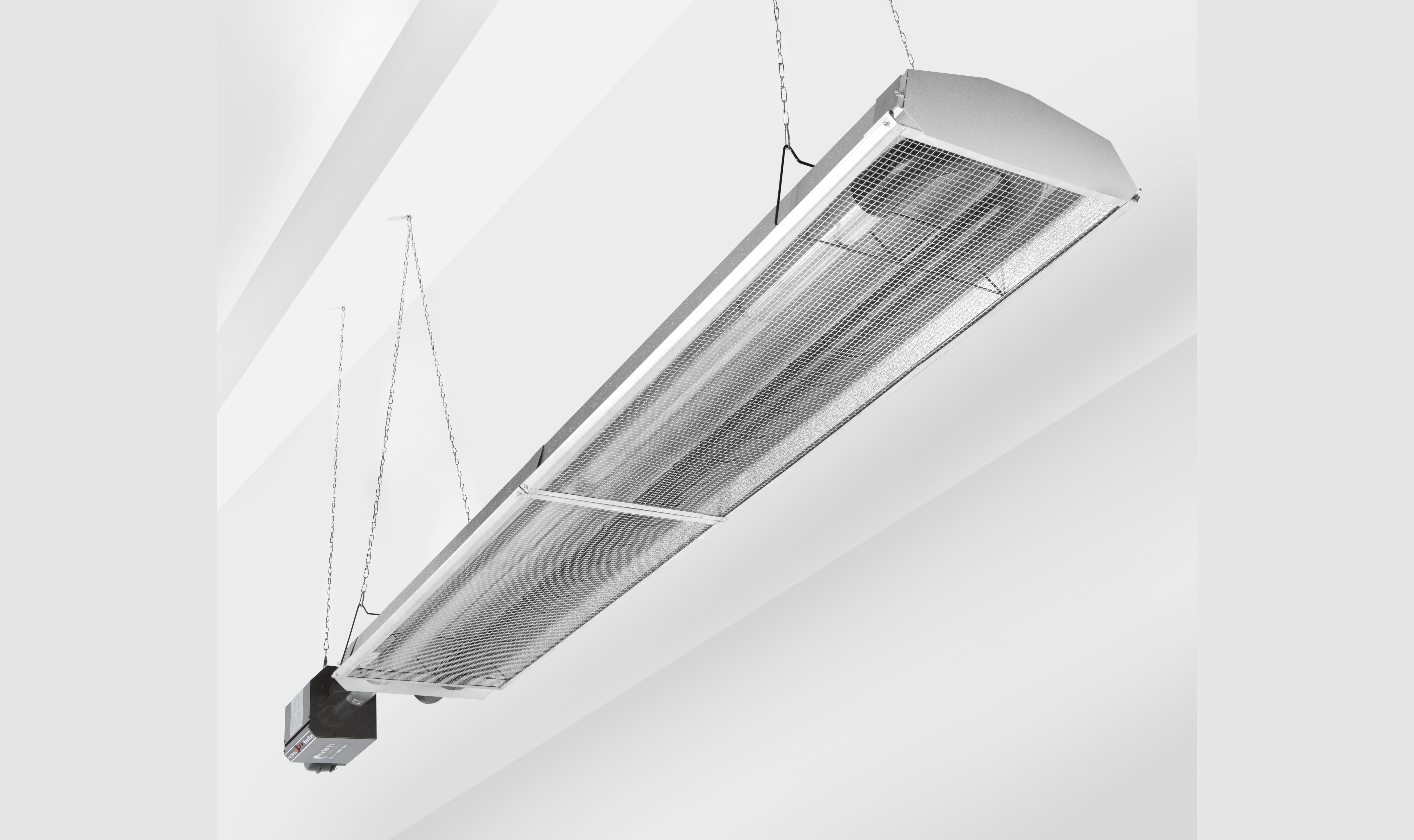

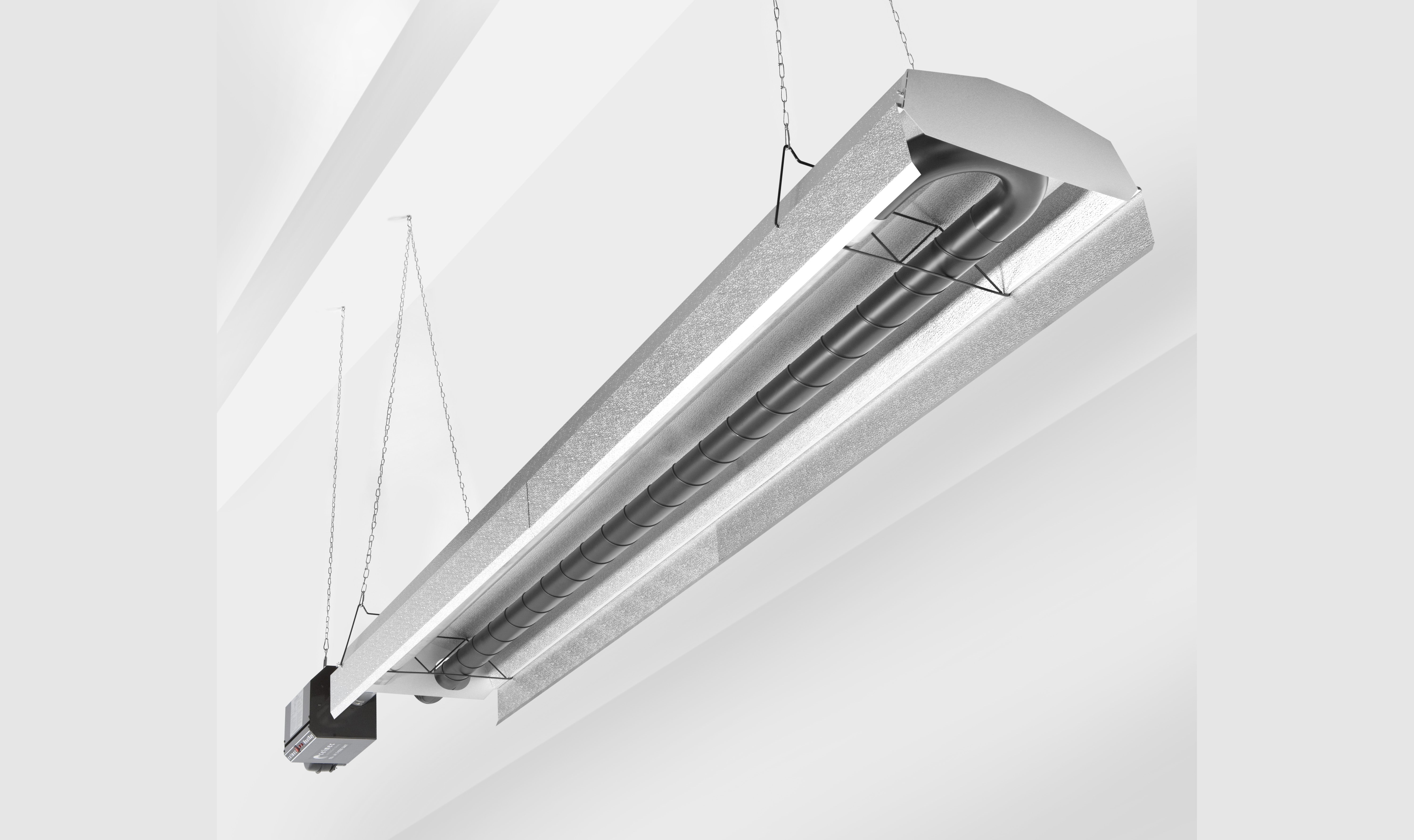

The TRH delivers reliable medium-intensity heating for extra-large areas and demanding environments.

The TRH delivers low-to medium-intensity, powerful yet comfortable radiant heat that can be evenly distributed over a large or difficult-to-heat area. With their oversized, industrial appearance, these units blend in well in outdoor, undercover or indoor spaces.

Vast interior and undercover exteriors, high installations
Industrial aesthetic
Ceiling or wall-mounted
Systems can be tailored for any setting

Dimmensions

UP3: 3000L x 600W mm UP4.5: 4500L x 600W mm UP6: 6000L x 600W mm UP7.5: 7500L x 600W mm UP9: 9000L x 600W mm UP12: 12000L x 600W mm

Materials

Charcoal powdercoated aluminised steel burner, embossed aluminium reflector, aluminised steel blast-tube, aluminised steel black heat-tubes.

Shipping

Our local production ensures continuous stock availability, eliminating lengthy delays and providing dependable service.

POA

Talk To Sales

For radiant heat evenly distributed over a large area with a rapid warm-up.

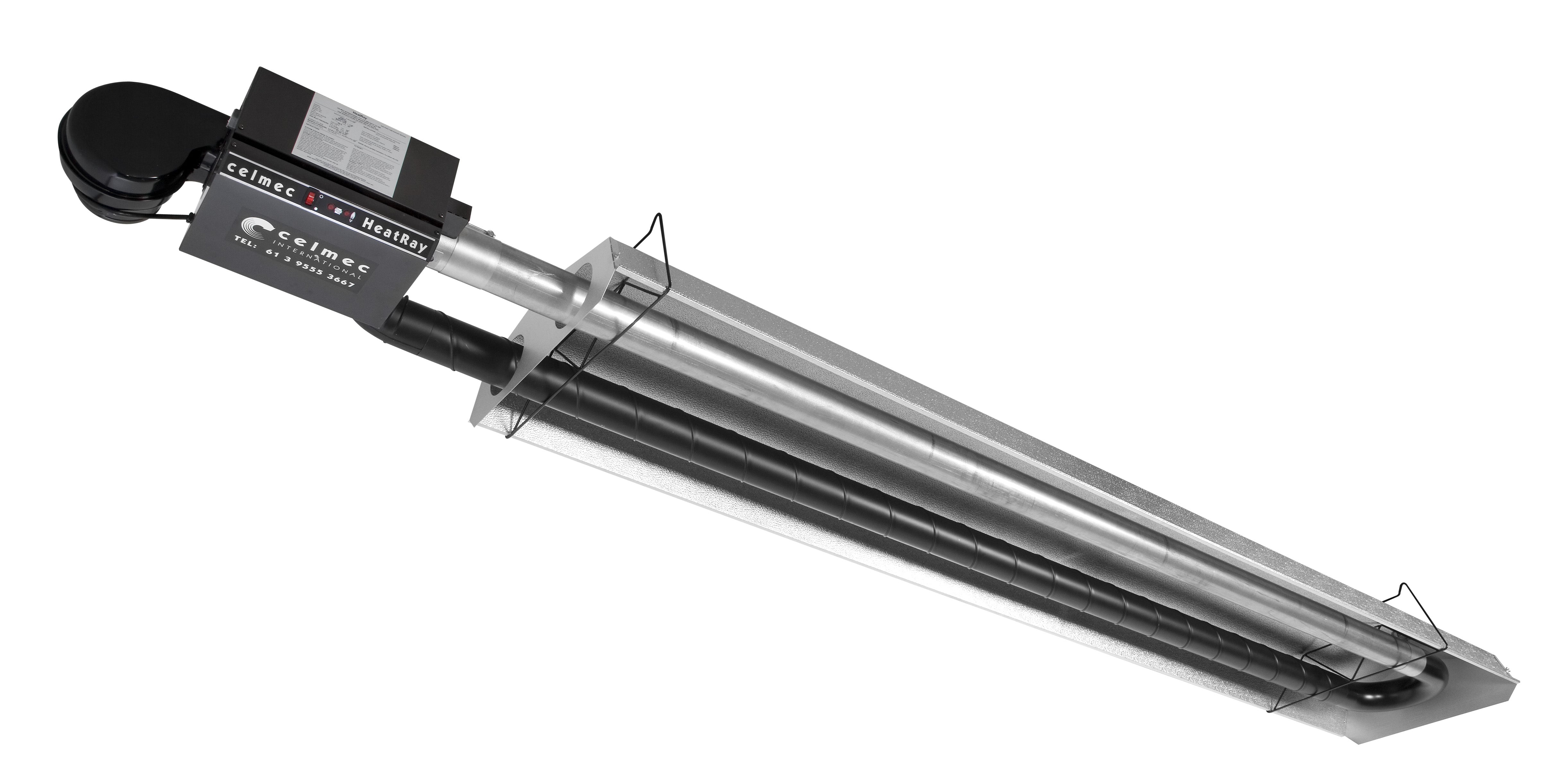

The TRH comprises a gas-fired burner and heat tubes, encased within a large reflector to prevent heat loss and concentrate heat where it’s needed below. concentration to where it’s needed below.

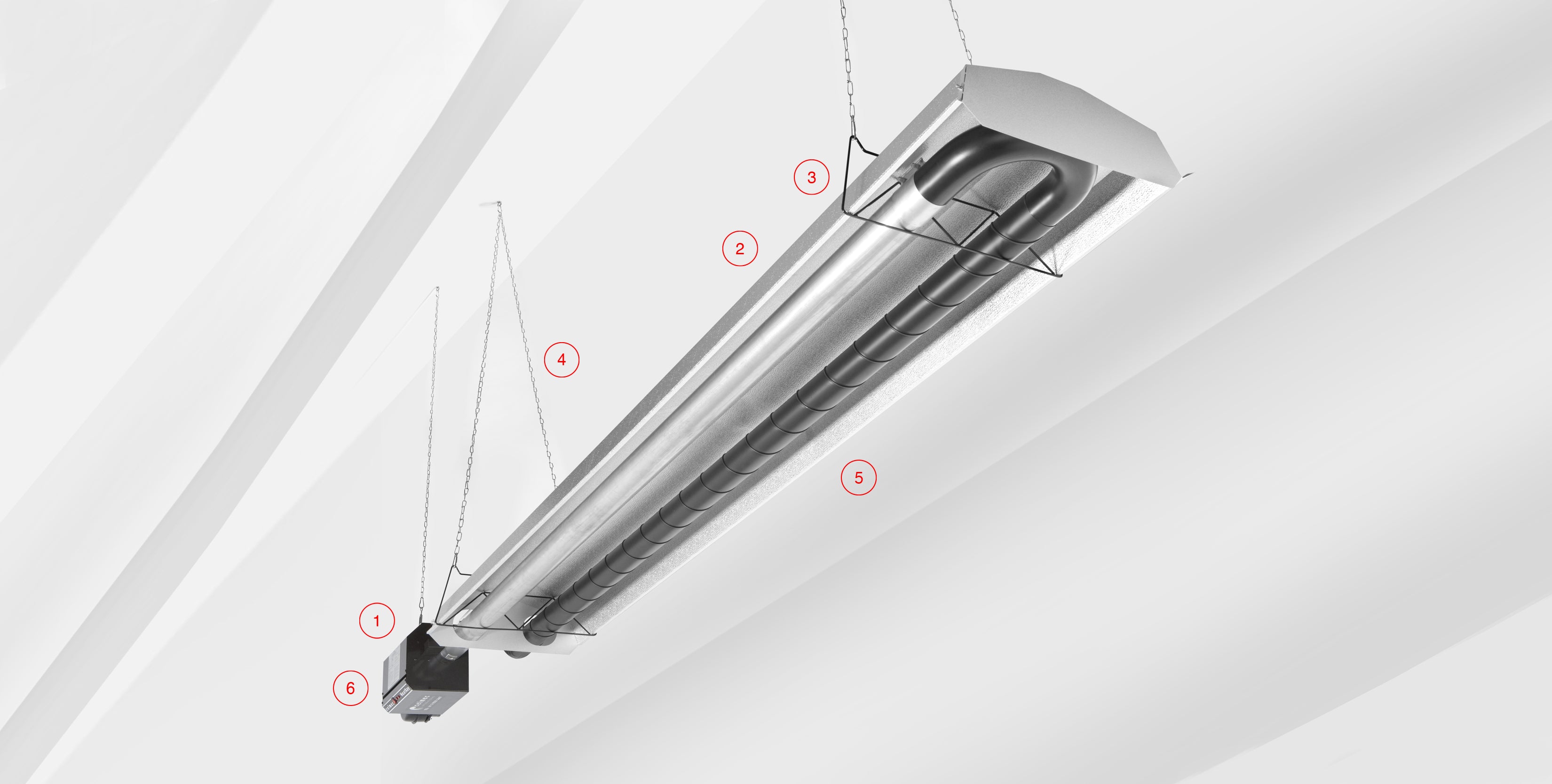

1. High efficiency

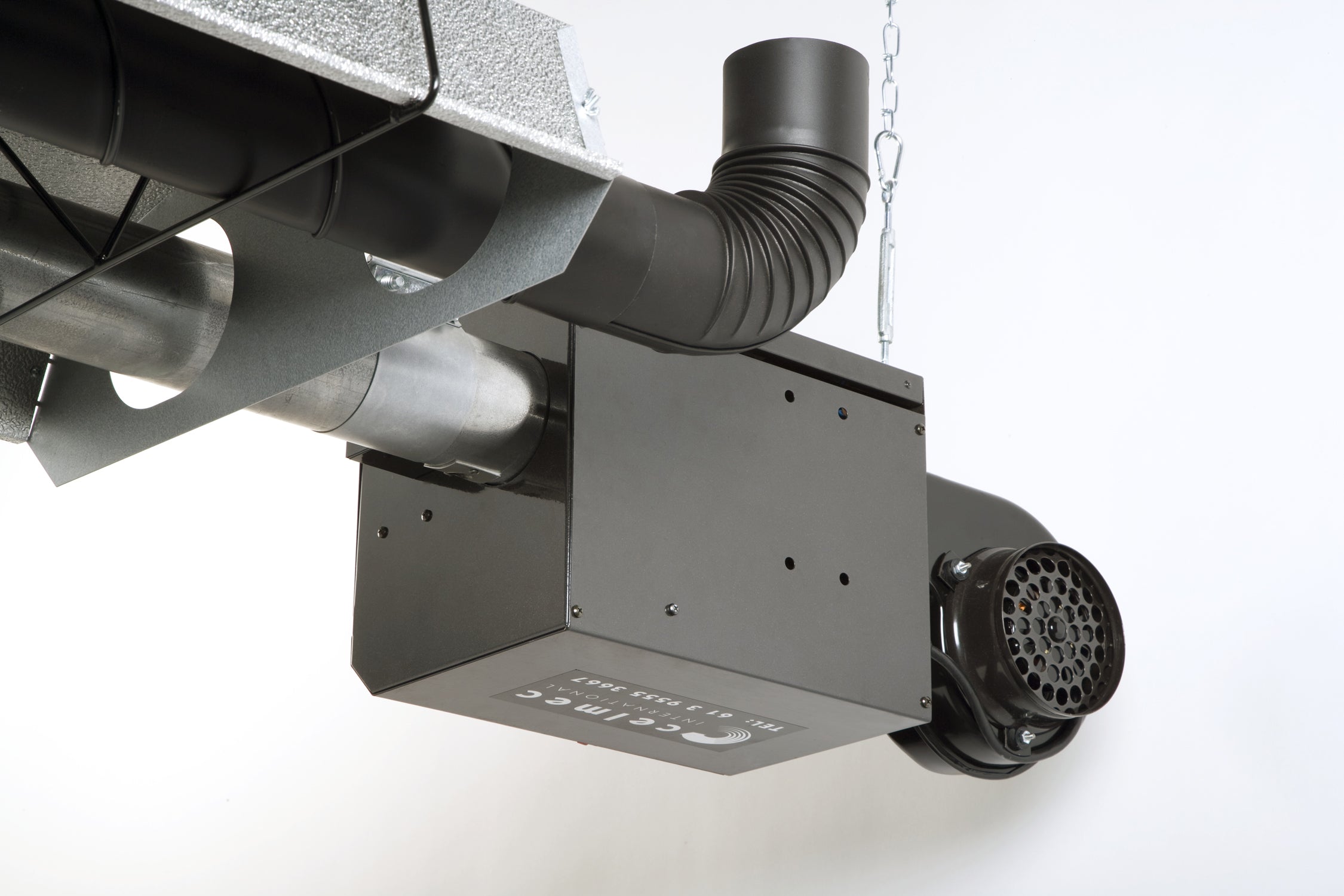

A highly efficient forced-draught gas burner, combined with black heat tubes and aluminium reflectors, produces powerful, non-glowing, low-to-medium-intensity radiant heat with a rapid warmup.

2. Non-corrosive

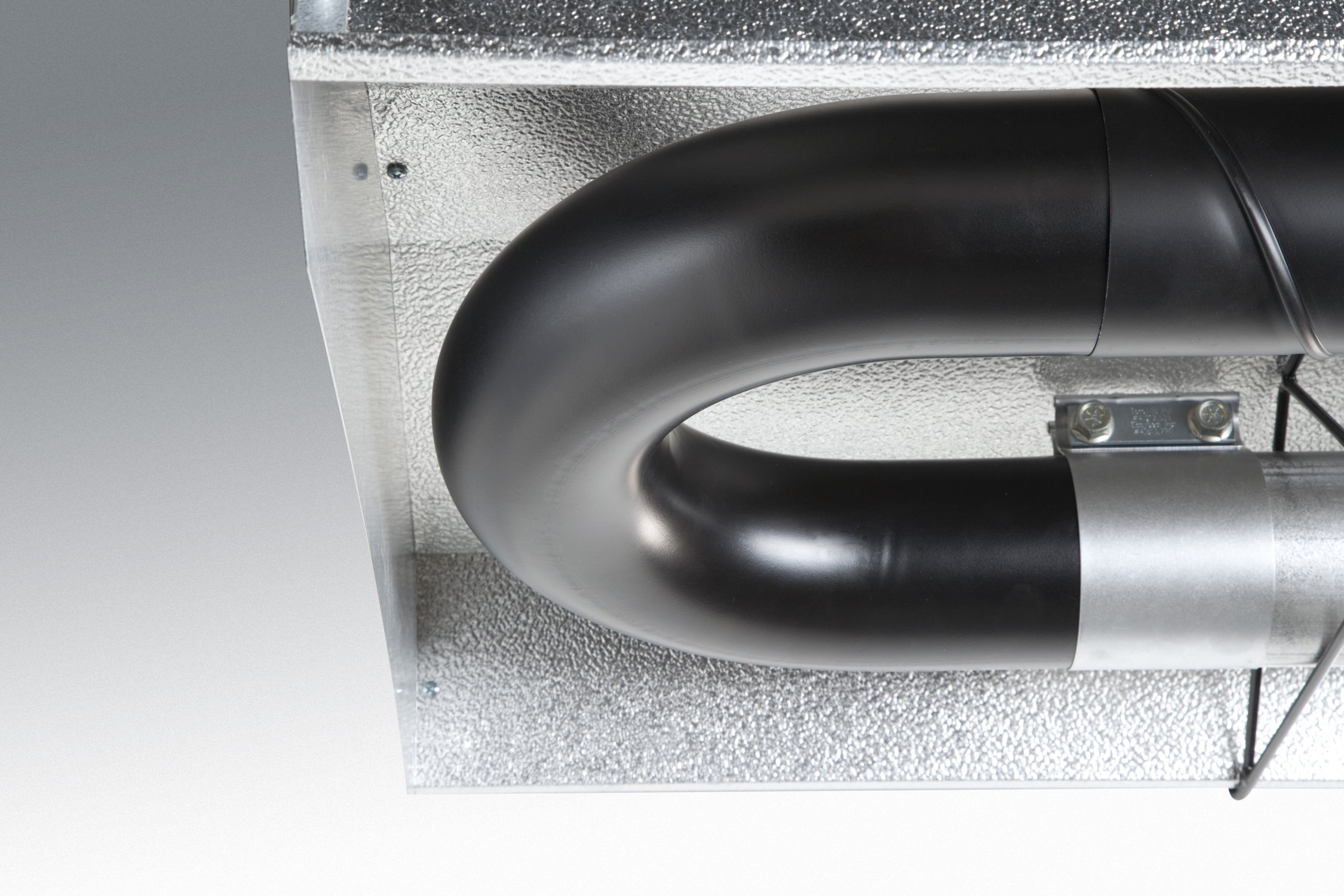

The burner casing and heat tubes are made of aluminised steel, which is non-corrosive and lightweight. The reflectors use non-tarnishing aluminium for maximum performance and longevity.

3. Suspension hangers

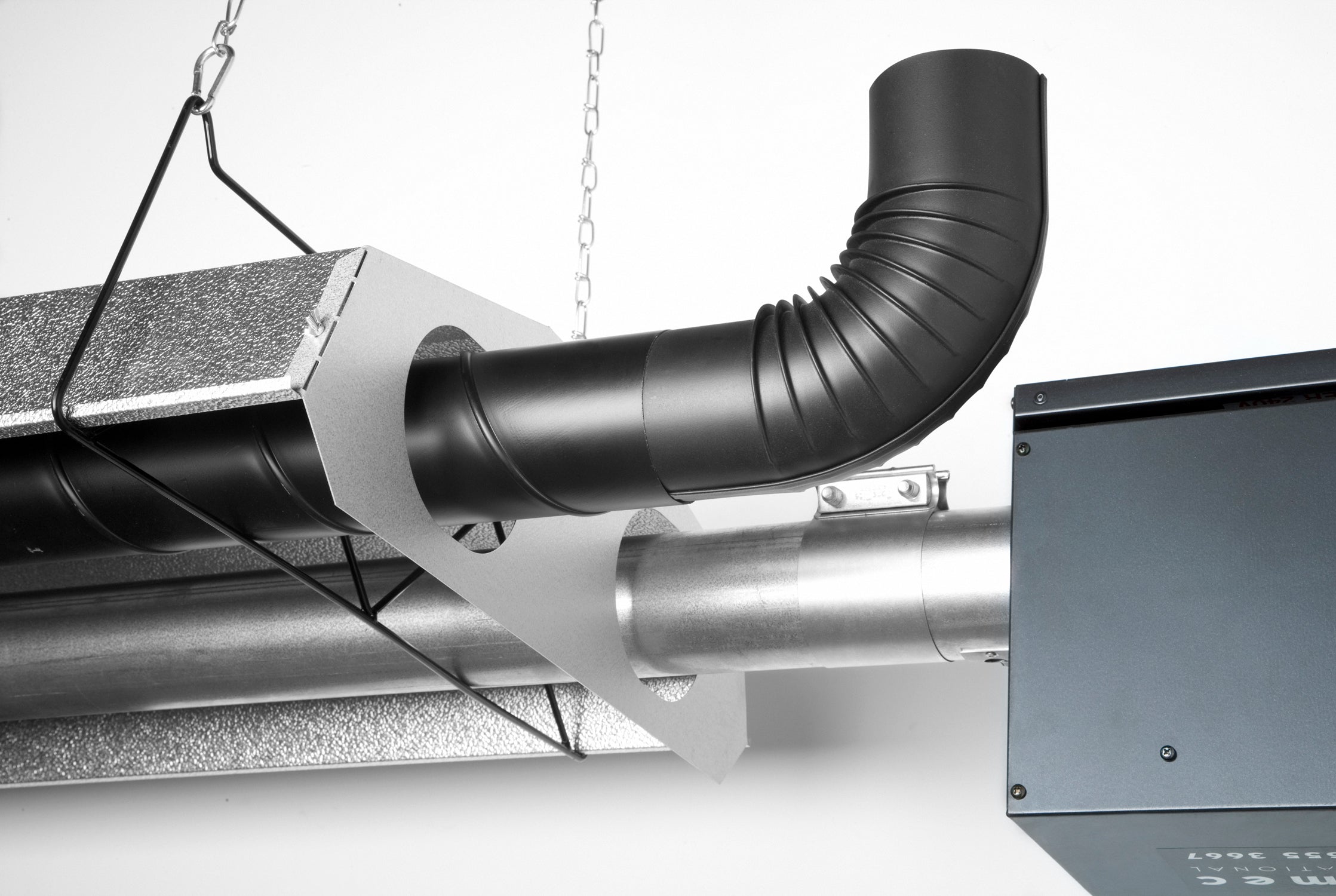

Wire suspension hangers are designed to allow for expansion and contraction, with minimum heat source contact.

4. Mounting options

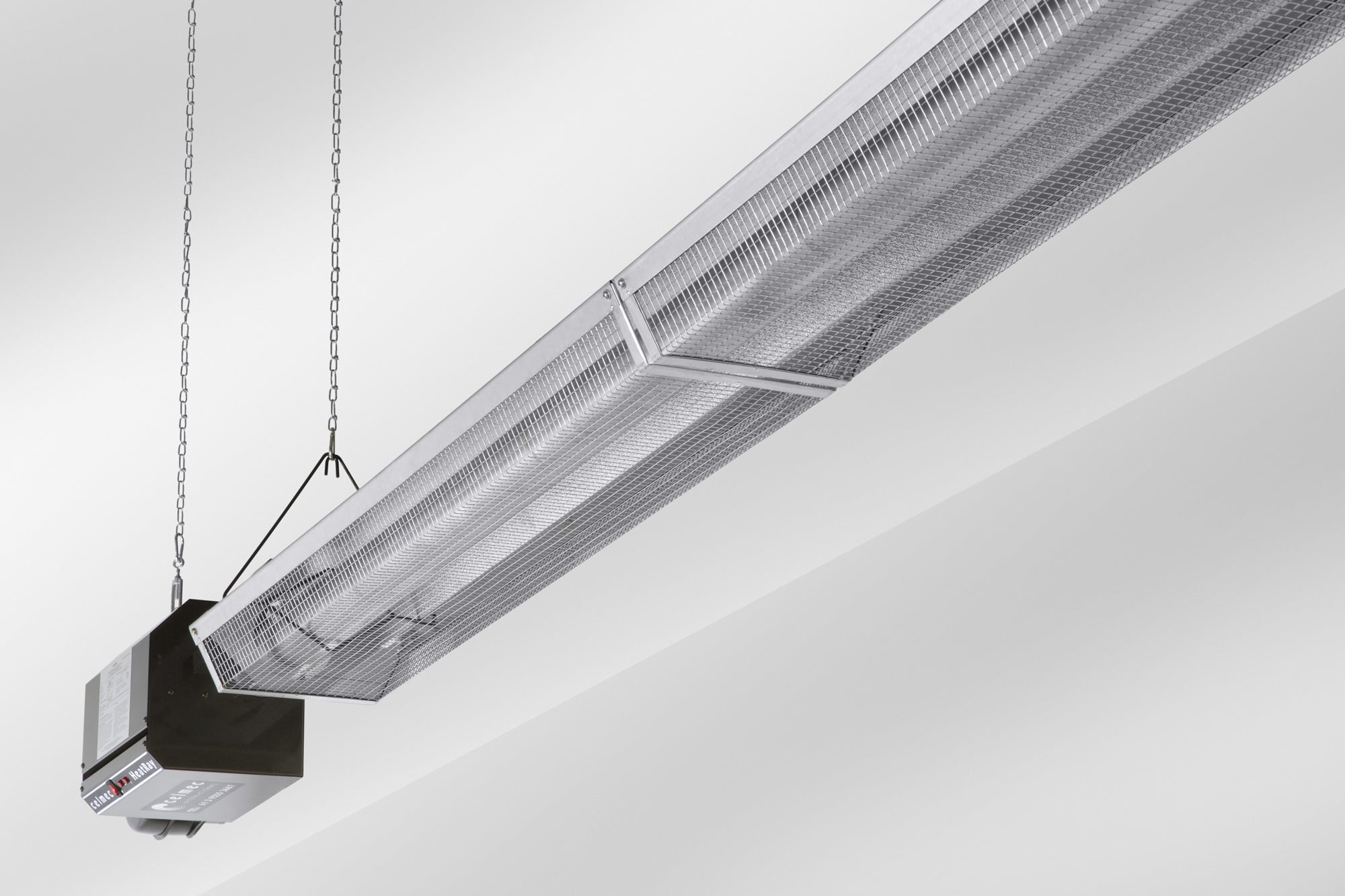

These units are designed to be ceiling or wall-mounted, and configured with safety chains for easy installation and free movement.

5. Industrial look

The TRH is industrial in appearance, designed to complement most outdoor under-cover and large spaces. The tones include a charcoal-coloured burner, an embossed aluminium reflector, an aluminised steel blast tube, and black heat tubes.

6. Easy control

Electronic on/off or thermostatic control.

Options for all spaces

The TRH range provides heat coverage between 35 and 180 sqm per unit. These heaters are also ideal for elevated ceilings, with mounting heights between 3.5 and 6.5 metres.

Unique installation

Ask about an optional protective mesh guard for certified mounting below 3.5 metres. Several custom accessories and decorative enclosures are also available.
